Eyre

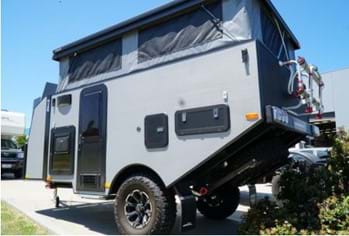

The Eyre Hybrid Camper is designed for Australian conditions.
With a durable chassis & suspension, lightweight body & external cooking, the Eyre Hybrid options include a full internal kitchen, café dining and bathroom for couples.
The bunk model comfortably sleeps up to 4.
The Eyre Hybrid is an aerodynamic, single axle, full lift Pop Top, off road unit with Trailblazers RV exclusive and unique drawbar slide Kitchen Pod.
Sleeps: 2-4
Tare : 1500 kg (approximately)
ATM: Up To 2600 kg
Storage: TBA
Ensuite: Optional
Specifications
3.5 Metres/11 Feet
4.0 Metres/13 Feet
| Chassis | Built in house Spare Wheel – Chassis Mounted | Entry Steps
| Single – Manual pull-out |
|---|---|---|---|
Suspension
| Independent Double Shock/Coil Suspension 2800KG
| Water Tanks
| 95L Freshwater Tank 100LT Greywater Tank 12V Pump Tank Filler Town water supply |
Brakes
| 12” Electric drum brakes
| Internal/External Lighting
| LED – Interior lights LED – Exterior lights Clearance lights Amber Clearance lights Clear Clearance lights Red Taillights |
Stabilisers
| ALKO 500 Heavy Duty Stabilisers ALKO 700 Heavy Duty Stabilisers
| Cabinetry Constructions
| Lightweight Timber Frame with 3mm White Ply Panels White Light 15mm Ply Doors and Drawer Faces Shell Push Button Locks |
Safety Brakes
| Park Brake Emergency Brake-Away Switch (Required for unit 2000KG +) | Bench Tops
| Standard High-Pressure Laminate Benches and Tables
|
Rims
| 16” x 7.5”- 6 Stud Alloy Rims
| Bathroom/ Laundry | Interior Shower/Toilet Combo with 12V Fan on a certain Eyre models only |
| Tyres | LT265/75R16 A/T Tyres | Bedroom | Queen Size Pocket Spring Mattress |
| Tow Hitch | Cruisemaster DO35 All Terrain(Pin) | Internal Kitchen Appliances & Accessories | 2 Burner Stove with Glass Lid on certain models only. |
| Rear Bumper | Standard Fixed Rear Bumper Bar | Fridges | Bushman 85LT 12V Fridge/Freezer |
Jockey Wheel
| ARK Extreme Off Road 750
| Sink
| Single Stainless-Steel Sink with Glass Lid & integrated tap on certain models only. |
Body Construction
| Fully Insulated Composite Panel with Fiberglass Skin both sides | Air Conditioning
| SIRICCO FANS
|
| Interior Surface | Gloss White Filon Fibreglass Skin | Hot Water Service | Endless on demand HWS GWSH-2 |
| Floor | Honeycomb Core Panel | Awning | Roof mount Awning to (Size to suit model) |
Roof
| Aluminium Pop Top Roof Extrusion Tent Section 12v Actuators with Control Panel | Power
| 1 x 100AHR Lithium 175W Solar panels Projecta Battery Management System |
Roof Vents
| 400x400mm 12v Bathroom Exhaust Skylight WITH LIGHTS 500x500mm Pressure Vent Skylight with LED lighting | Gas
| 4.5KG Gas Bottles Gas Detector
|
| Windows | Double Glazed with roller Blackout & Flyscreens
| Front Sliding Pod | LED overhead lights Gas Point Weather cover 12V socket, USB & 240V points 2 Burner Slide BBQ SWIFT Single Stainless-Steel Sink with Glass Lid & integrated tap Bushman 85LT inbuilt Fire Extinguisher |
Entry/Access Doors/Outside Tables
| Entry Door with Window & separate mesh Security door Thetford Toilet Door 3 |
The following options and accessories are available for your RV. Contact us for a customised quote:
Chassis
| TRAILBLAZERS built in house TRAILBLAZERS Aluminium Tray Spare Wheel – Chassis Mounted Bike Rack Receiver Hayman Reece Sidewinder Pinbox Coupling Goose neck Coupling 12V Front legs
| Bathroom/Laundry
| Mirror Shower Door Porta Potti Separate shower square Separate corner shower R/HS Separate Toilet side cassette Porcelain bowl toilet Vanity Vanity mirror Shaving cabinet 4KG Front loader Camec washing machine 3KG Top loading washing machine 2.5 KG Wall Mount |
Suspension
| Stage 2 Independent Airbag Suspension 2800KG Stage 4 Independent Airbag Suspension 2800KG TANDEM independent Double Shock/Coil Suspension 3500KG TANDEM 3500KG STAGE 3 AIR with REMOTE TANDEM 3500KG STAGE 4 SELF LEVELLING | Bedroom
| Queen size pocket spring mattress Bunks Café seating bed conversion Single beds Bed pod slide out mechanism. Robe with inbuilt vanity with mirror life lid
|
Brakes
| DISC Brakes
| Outside Shower
| External shower Shower/Sink & Drop bench Shower Tent |
Stabilisers
| LANDING LEGS
| Internal Kitchen Appliances & Accessories
| 3 Burner triangle Thetford Combi Unit – 3 Br Gas Cooktop with sink & glass lid Combination 2 Br Gas & 1 x 240V induction Cooktop 240V 2 Br Induction Cooktop 3 burner Stove/Oven/Grill Combo – Gas Only Diesel Cooktop Diesel heat Cooktop/Oven 3 + 1 with fan forced oven Ranger Hood Slide out pantry |
Rims
| 16 “x 7.5” – 5 Study Alloy Rims
| Fridges
| 50LT 12V Fridge/Freezer (Under Bench) 85LT 12V Fridge/Freezer (Under Bench) 110LT 12V Fridge/Freezer (Under Bench) 130LT 12V Fridge/Freezer (Under Bench) 135LT Fridge Freezer 285LT Fridge Freezer 65LT portable Fridge Freezer 95LT portable Fridge Freezer |
Tyres
| LT285/75R16 A/T Tyres Mud Off-Road Tyres | Microwaves
| Microwave 900-Watt 25LT Convection Microwave |
Tow Hitch
| ALKO Off Road Head Coupling (50mm Ball) Hayman Reece Hitch 75mm Ball Hitch
| Sink | Standard Stainless-Steel Single with Drainboard Single stainless ink with glass lid & access MK3 Standard water filter tap set Chrome plated flick mixer with water filter Chrome flexible tap for shower Towel rails Fisher & Paykel dishwasher |
Jockey Wheel
| ALKO Manual Pivot
| Air Conditioning
| Roof mount only with 12V actuators – Houghton 2400 rev cycle Under bunk air conditioner IBIS 4 reverse cycle air-con (55KG including roof support) Houghton reverse cycle air conditioner 3400 Low profile 3500 Houghton reverse cycle air conditioner |
Accessories – Rear under body
| Maxi Tracks Jerrycan Holder (Each)
| Heating
| Gas ducted heater Gas combo heating /HWS Diesel ducted heating Auto term 12V 2KW diesel heater VarioHeat 12V Gas ducted heating 3.25KW VA200 heater Diesel heat combo |
Body Construction
| ROOF EXTRUSION
| Hot Water Service
| Truma HWS Diesel HWS Diesel heat Gensis II HS3 |
Interior Surface
| Custom Sound Condensation Buffer Trim
| Awning
| Carefree awning 12V electric awning |
Roof
| Over centre lifts x 2 Sound & Condensation Buffer Panel
| Entertainment System
| RV Media system with int & ext, 22” TV/DVD & Winegard Arial 24’ TV DVD Fusion sound system Winegard Freevisionupgrade Internal TV bracket External TV point at front of hybrid next to pod RV WIFI system Reversing Camera Car kit for reversing camera 240 doubles points 12V USB points 10A Outlet 15A Input |
Roof Vents
| 400x400mm Skylight 500x500mm Pressure Vent Skylight 700x500mm Pressure Vent Skylight 700x500mm Pressure Vent Skylight with LED Lighting Fantastic Fan
| Power
| 1 x 150W Lithium battery 1 x 200 AHR Lithium 1x 300 AHR Lithium 1 x 400 AHR Lithium 200W Solar Panels 150W Flexible Solar Panels Redarc Manager 30 Redarc Redvision 1000W Inverter 2000W Inverter 3000W Inverter Victron 24V System Multiplus Charger/Inverter 3000W |
Windows
| 1450×550 1100×550 1100×450 900×350 500×350 1200×300 | Gas
| 4.5KG Gas Bottles
|
Entry/Access Doors/Outside Tables
| HATCH No.1 HATCH No. 2 HATCH No. 3 HATCH No.4 HATCH No.5 Picnic Table (Large) Picnic Table (Medium) Picnic Table (Small) | Front Sliding Pod | Combi Unit – 3 Br Gas Cooktop with sink & glass lid Slide 12V portable fridge Freezer F60
|
Entry Steps
| Double – Manual pull-outstep Single – 12V Double Electric – 12V | Cabinetry Construction | Lightweight Timber Frame with 3mm Custom Ply Panels Custom Selection Doors and Drawer Faces Available |
Water Tanks
| Fresh – 80LT Fresh – 160LT Grey – 160 LT Grey – 80LT
| Bench Tops
| Custom High-Pressure Laminate Benches and Tables Bench Top Extension Drop down table leg Finch Lagun 360 Drop down Table leg Drop Rail at end of bench |
Lighting
| Exterior Insect lights Reading lights Down lights Strip lighting |
